The Haoji Railway – Sleeper Boots

The Haoji Railway -
Sleeper Boots

project details
Rubber Sleeper Boots
The Haoji Railway (Project Name: Menghua Railway)

Description

The Haoji Railway (the project name is Menghua Railway) is a new strategic large channel of the national “Northern Coal Transport“, with a total length of 1813 kilometres. It starts at Haolebaoji Station in Ordos City, Inner Mongolia, and passes through Inner Mongolia, Shaanxi, and Shanxi, Henan, Hubei, Hunan, Jiangxi provinces and regions, and ends at Ji’an station on the Beijing-Kowloon Railway.

Solution

Sleeper boots promote smooth track deflection and provide a degree of elasticity for the otherwise rigid slab track. Concrete sleepers rest directly on microcell foam pads inside the rubber sleeper boots. The noise and vibration-absorbing sleeper boots are then partially embedded in concrete slabs.

requirements
reduction of train-induced vibrations
through the installation of Rubber Sleeper Boots in tunnels

EPDM

Material

120 km/h

Design speed

2017/6 – 2018/10

Installation

21 T

Axle load

236 km

Installed length

cv = 60 – 90 kN/mm

Product details

impressions
visible
results
tiantie-group_cases_the-haoji-railway_image01
tiantie-group_cases_the-haoji-railway_image02

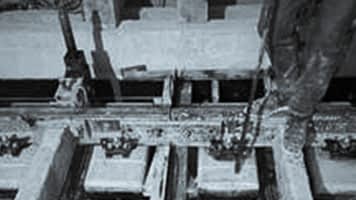

tiantie-group_cases_the-haoji-railway_image03

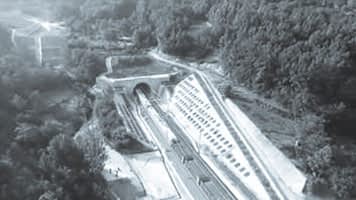

tiantie-group_cases_the-haoji-railway_image04
