Chengguan Railway – Track Mats

Chengguan Railway -
Track Mats

project details
Track Mats
Chengguan Railway

Description

The Chengdu-Dujiangyan Railway (Chengguan Railway) is a new passenger line connecting the city centre of Chengdu with Dujiangyan City. The running of the train has an impact on the viaduct structure.

Solution

An FST on track mats was constructed to minimise the impact of train-induced vibration on the viaduct structure.

requirements
reduction of train-induced vibrations through
the installation of floating slab track with track mats

NR, CR, SBR

Material

200 km/h

Design speed

0.025 N/mm³

specific static stiffness

USM 2025

Product details

2009 – 2010/5

Installation

200 m

Installed length

impressions
visible
results
tiantie-group_cases_chengguan-railway_image01

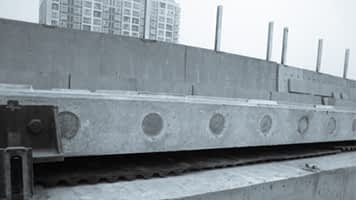

tiantie-group_cases_chengguan-railway_image02
tiantie-group_cases_chengguan-railway_image03
