Shanxi Middle-South Line – Sleeper Boots

Shanxi Middle-South Line -
Sleeper Boots

project details
Rubber Sleeper Boots
Shanxi Middle-South Line (Coal Transportation) the Heavy-Haul Railway

Description

Valuable coal resources in the western part of China need to be reliably transported to industrial areas in the eastern part of China. China-Shanxi Railway Central and Southern Railway is part of this essential connection. It starts at Watang Town, Shanxi Province, crosses the Yellow River from Taiqian County, Henan Province and enters Liangshan County, Shandong Province.

Solution

Sleeper boots promote smooth track deflection and provide a degree of elasticity for the otherwise rigid slab track. Concrete sleepers rest directly on microcell foam pads inside the rubber sleeper boots. The noise and vibration-absorbing sleeper boots are then partially embedded in concrete slabs.

requirements
reduction of train induced vibrations
through the installation of rubber sleeper boots in tunnels

EPDM

Material

100 km/h

Design speed

30 T

Axle load

2013/8 – 2014/10

Installation

12.2 km

Installed length

impressions
visible
results
tiantie-group_cases_shanxi-middle-south-line_image01
tiantie-group_cases_shanxi-middle-south-line_image02
tiantie-group_cases_shanxi-middle-south-line_image03

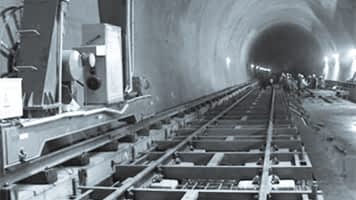

tiantie-group_cases_shanxi-middle-south-line_image04
