Shenzhen Metro Line 11 – Rubber Bearings for FST

Shenzhen Metro Line 11 -
Rubber Bearings for FST

project details
Rubber Bearings for FST
Shenzhen Metro Line 11

Description

Shenzhen Metro Line 11 starts at Futian Station, passes through Futian District, Nanshan District, and Bao’an District, runs through the massive airport area and urban business district, and ends at Bitou Station. It has a length of approximately 52 kilometres, including a 35-kilometre underground and a 15-kilometre elevated line. 18 stations have been constructed: 14 underground stations and 4 elevated stations.

Solution

Due to the close distance between the track and residential buildings, N&V mitigation measures become necessary. FST on rubber bearings was installed in the area between Qianhaiwan and Nanshan.

requirements
reduction of train-induced vibrations
through the installation of FST on rubber bearings

NR, Steel shims

Material

100 km/h

Design speed

2019/4 – 2019/7

Installation

12.1 km

Installed length

Rubber Bearings type III

Product details

impressions
visible
results
tiantie-group_cases_shenzhen-metro-line-11-tunnel-section_image01

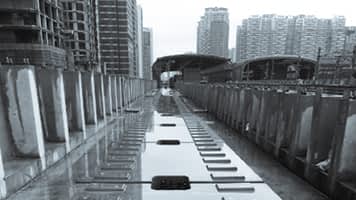

tiantie-group_cases_shenzhen-metro-line-11-tunnel-section_image02
tiantie-group_cases_shenzhen-metro-line-11-tunnel-section_image03
